Cut To Length Lines
At Ferro Industries we understand your requirement exactly as
A wide range of designs are offered to suit individual requirements.
Our Cut To Length Lines are used for high quality requirements of sheets used in the Automobile Industry, Construction Industry and other White Goods Industries. Our lines are equipped with the latest electronic controls for achieving highly accurate lengths of sheet.
These Cut To Length Lines can be customised to suit specific requirements.
They are engineered and constructed to meet specific end user needs for precision material parameters and production requirements.
Our Cut To Length Lines are fitted with Rotary Encoders that are connected to PLC controlled control panels and are Operator friendly. We offer different types of Levellers / Precision Levellers depending upon thickness and type of material.The length and quality of the sheet can be easily set on the panel. The customer can choose from a variety of simple Start / Stop type to a more advanced Servo PLC controlled device.
PRODUCT RANGE
| S.NO. | WIDTH | THICKNESS RANGE | COIL WEIGHT | MATERIAL |
|---|---|---|---|---|
| 1 | 500mm | 0.3 to 6 mm | Upto 7.5 Tonnes | ColdRolled , MildSteel, Aluminum,Copper ,Brass |
| 2 | 1250mm | 0.3 to 6 mm | 10 Tonnes | Cold Rolled Mild Steel |
| 3 | 1500mm | 0.3 to 6 mm | 20 Tonnes | Cold Rolled Mild Steel |
| 4 | 2000mm | 3 mm to 12 mm | 30 Tonnes | Hot Rolled Mild Steel |
Download PDF

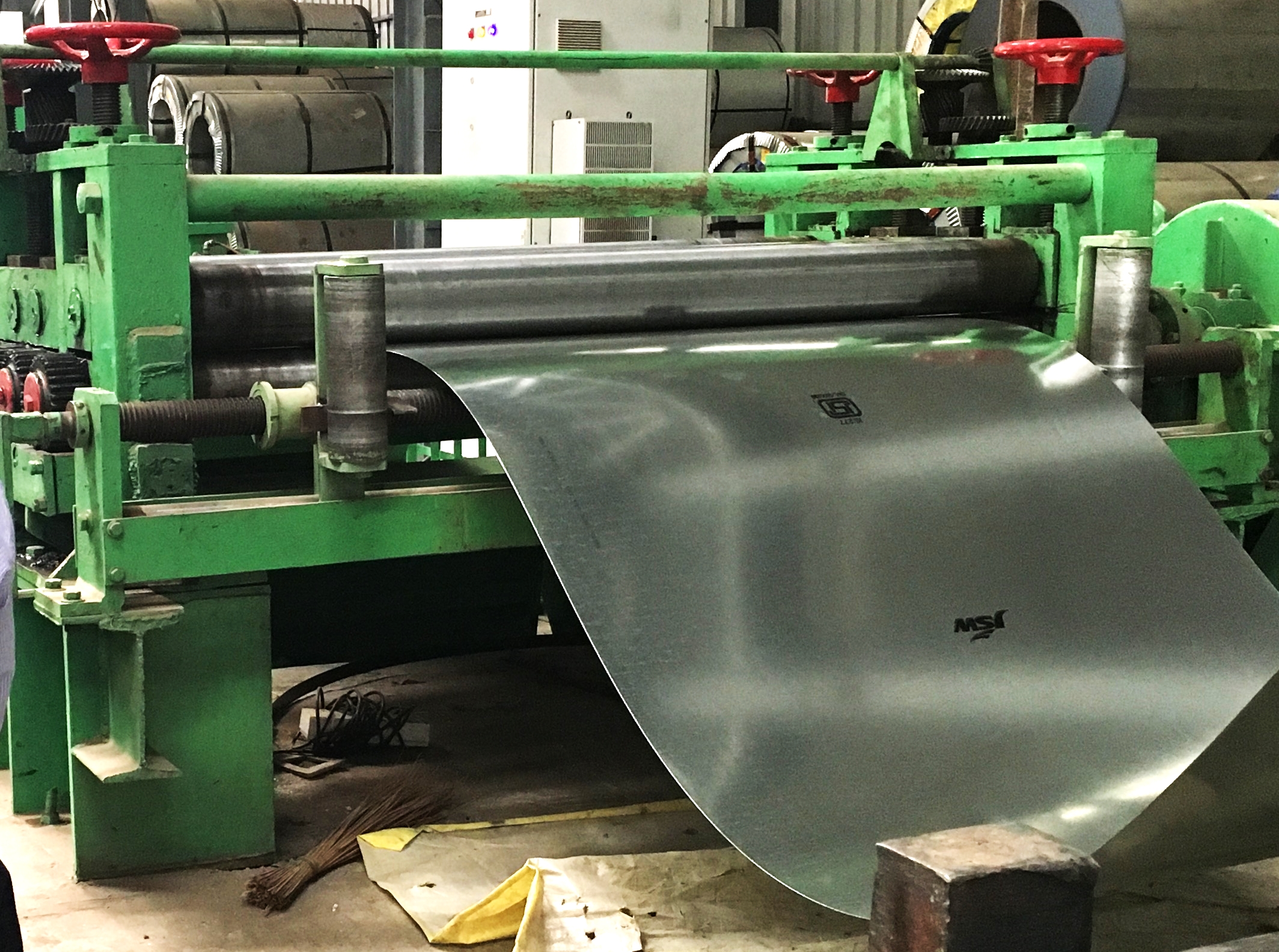

Download PDFCut To Length Line
Cut To Length Line Shape

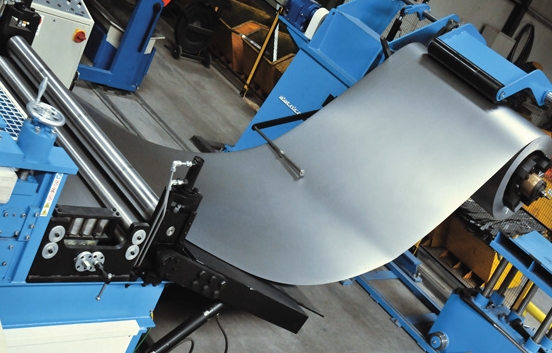

Cut To Length Machine
